  Machines > Welding&Brazing > Brazing SAB 2000

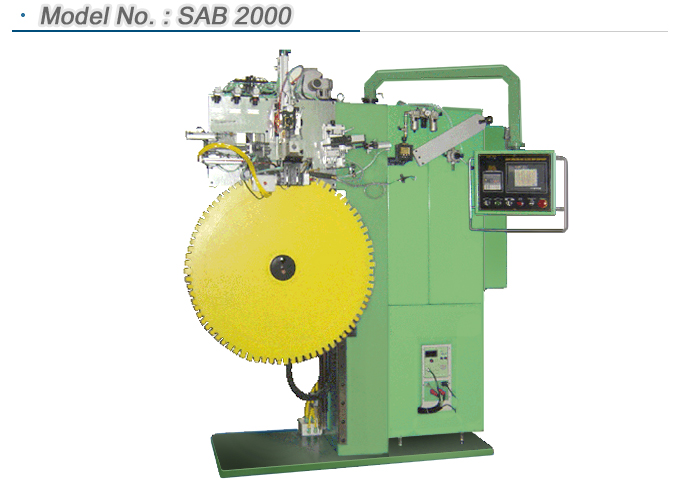

Auto Brazing Machine SAB 2000

[ explanation ]
High frequency automatic brazing machine for diamond segment on disc with a diameter from 250mm to 2,100mm.

[ Main Features ]
Automatic Feeding & Transport Segment , Feeding of Silver Solder enables good quality of brazing.
Fully automatic control by PLC & monitor program.
High efficiency of brazing by F.E.T. type generator.
[ Technical Data ]

Power Supply
Power Consumption
Cooling water
Compressed Consumption
Diameter of the saw blade
Adjustable brazing time
Adjustable cooling time
Overall dimension of the welder
Weight of Welder
weight of the high- frequency generator
characteristic of H.F generator
Option

: 220V, 3Phases, 50/60Hz
: 25KW
: 5 Liters/min. 2-5 Bars
: 40Liters/min. 7-8 Bars
: From 250 to 2,100mm
: 0-30sec.
: 0-30sec.
: 960W x 1,780L x 2,800H
: Approx. 1,200Kg
: Approx.130Kg
: 25Kw
: Temp. Control system
