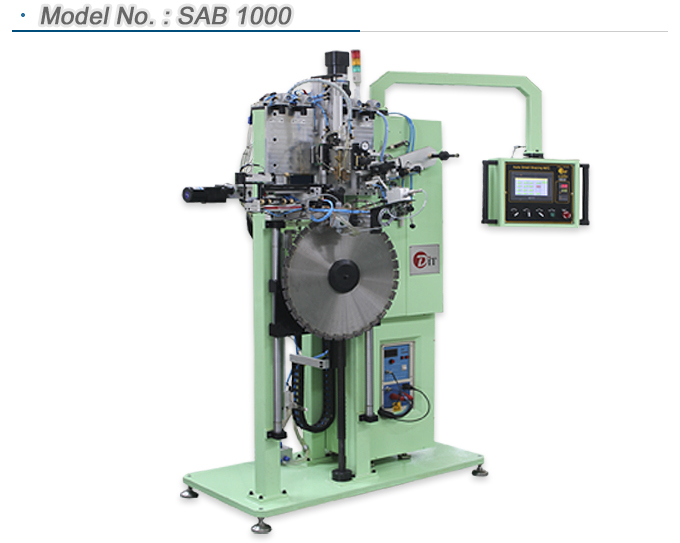

Auto Brazing Machine SAB 1000

[ explanation ]
Automatic induction brazing machine for small diameter circular saw blade.

[ Main Features ]
Automatic Feeding & Transport Segment , Feeding of Silver Solder enables good quality of brazing.
Fully automatic control by PLC & monitor program.
High efficiency of brazing by F.E.T. type generator.
[ Technical Data ]

POWER SUPPLY

ELECTRIC POWER
COOLING WATER
AIR CONSUMPITION
DIAMETER OF THE SAW BLADE
SEGMENT DIMENSION LENGTH
HEIGHT
THICKNESS
ADJUSTABLE BRAZING TIME
ADJUSTABLE COOLING TIME
OVERALL DIMENSIONS
WEIGHT(INDICATIVE)
OPTION

: 220/380V, Single /3PHASES, 50/60Hz
  (Different voltages and frequencies on request)
: 20 KVA
: 30 liter/min - 1~3 BARS
: 40 liter/min - 6 BARS
: from 230 to 1,000 mm
: from 18 to 50 mm
: from 5 to 25 mm
: from 1.6 to 12 mm
: 0 ~ 30 sec
: 0 ~ 60 sec
: LxWxH: 1600x1200x2300mm
: Approx. 2,000 kg
: Temp. Control system
  Cooling system
