  Machines > Welding&Brazing > Welding CLWB 20

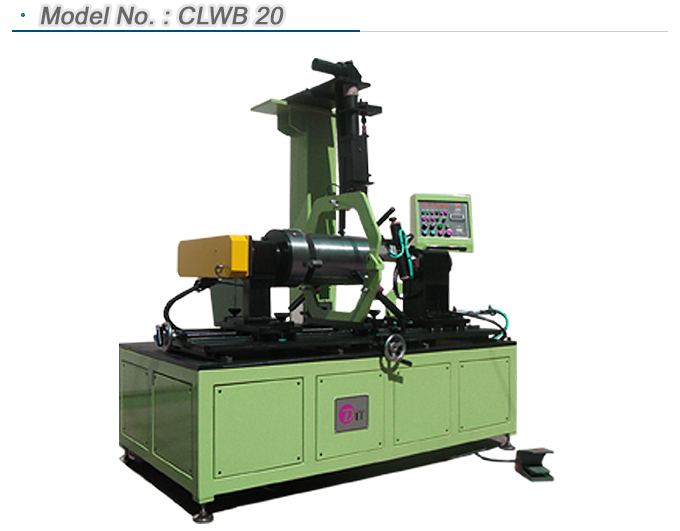

LASER Welding bench for core drill CLWB 20

[ Main Features ]
Automatic partitioning upto segment numbers(1 ~ 50EA) and core drill diameter.
Fixed Spindle but adjustable its Rotation Speed / Moving Distance / Rotating Position.
As Servo Motor controls spindle rotation and speed, available to set precisional welding position.
[ Technical Data ]

Model
Max. Power Consumption
Power Supply
Air Pressure Supply
Welding Range
Spindle Rotation Speed
Production Capacity(8")
Overall Dimension


                   Weight

 : CLWB20
: 2KVA
: 200/380V, 50/60Hz
: 6~8 Bars, 20Liter/Min
: Φ22 ~ Φ400 / 50L ~ 500L
: 1 ~ 30RPM
: 100pcs/8Hours
: W(800mm)
: L(2000mm)
: H(1700mm)
: Approx. 500Kg
