Machines > Tension & Finishing > AWT 600

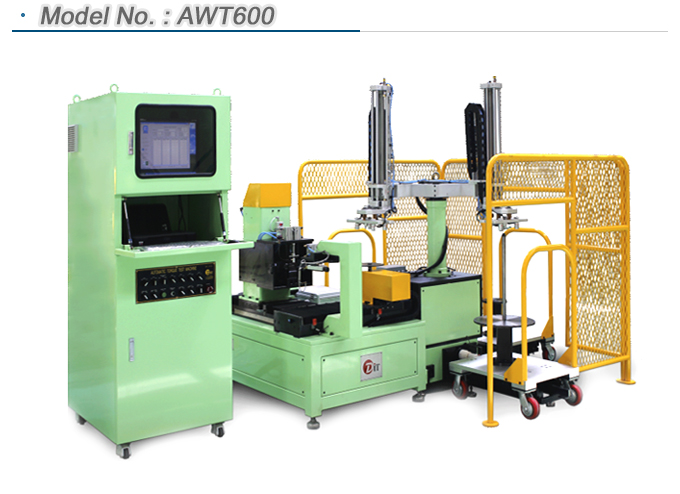

Auto Welding Torque Testing Machine

[ explanation ]
Fully automatic station for testing welded joint strength for laser or brazed blades according to the European quality and safety standards(DSA304)
[ Main Features ]
Prearrangement for Disk Loading / Unloading Spindle features automatic shank clamping; Torque unit is rotating applies pure momentum around welded joint center line, torque is applied by two cylinder applying torque to a saddle that is purposely tilting around joint center line while shank area nearby the joint is clamped and held still; Torque unit features a rotating saddle and a jaw assembly that has a target slot slightly larger than segment thickness; Disk segments engages inside Torque jaws via dedicated short stroke radial movement : X movement of the spindle assembly via pneumatic slide; Y movement of the torque unit via pneumatic slide Spindle rotation speed adjustable via inverter
[ Technical Data ]
Disk Diameter Range Productivity Power Supply Max power absorbed Air requirements Controller Machine Dimensions Machine Weight	: 105 - 625 mm / 4 - 24 Inches : Approx. 3 (sec / segment) : 380V, 3 phase, 50 Hz/60Hz : 5 kVA : 25 L/min - 6bar (1.5 gal/min - 90 psi) : PLC & PC : Approx.2,800W x 2,800L x 2,000H : Approx.3,000 kg
