  Machines> Sintering VS100/3

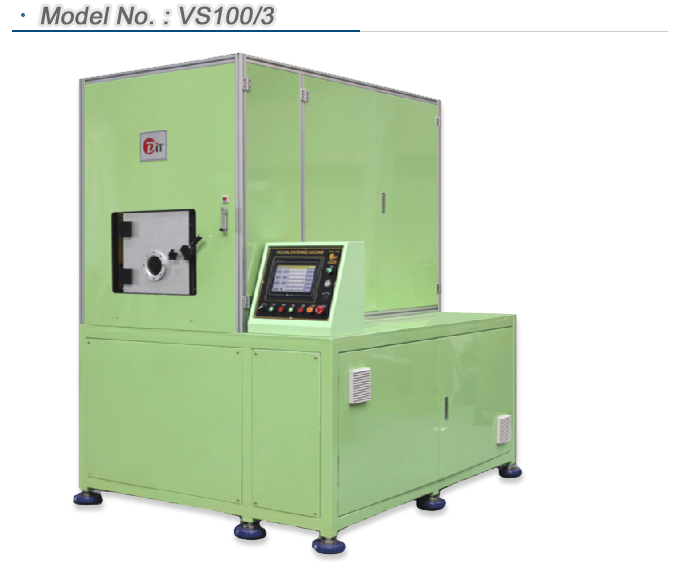

Vacuum Sintering Machine

[ explanation ]
One station automatic hot press machine with advanced technology for production of diamond segments in horizontal loading & unloading suitable for various kind of small quantity production.

[ Main Features ]
Automatic adjustment temperature, pressure and sintering time, inc. 10 different values.
Touch Screen with PLC allow to use 40 programs.
Color TFT screen displaying process curves.
Automatically diagnosing faults and displaying in English.
Compression force increasing proportional to temperature.
Automatically vacuumizing chamber or applying gas N2 in sintering process.
Displaying the displacement or the size of the segment.(Option)
[ Technical Data ]

Power supply
Max. power consumption
Temp. regulation & reading range
Compression force adjustment
Sintering area
Max. vacuum degree
Overall Dimension of machine
Overall dimensions    Length
                       Width
                       Height
                       Weight

: 220V~380V, 50/60HZ, 3P
: 100KVA
: 400~1200℃
: 5000 ~ 40000 Kg
: 100cm2>850℃
: 65mmHg
: 2,200W x 1,400L x 2,300H
: 1800mm
: 1600mm
: 2250mm
: 3000Kg
