Machines> Mixing > Powder Mixing TBM2

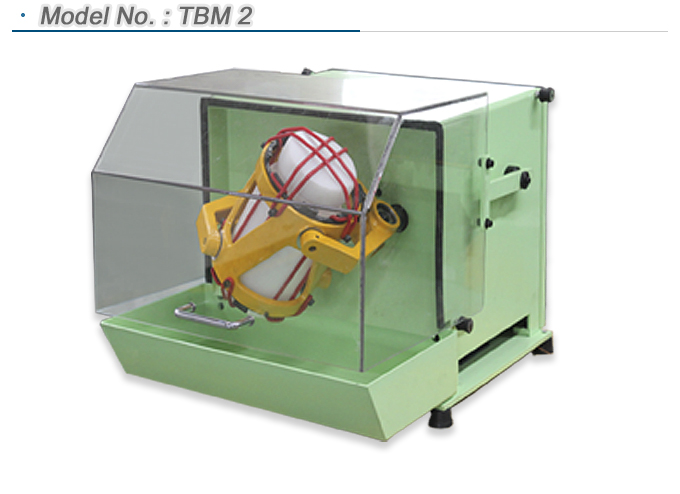

Pwoder Mixer

[ explanation ]
This tubular mixer is to mix metal powders and diamond powder with special turning and moving behaviors in order to mix, cut powders very homogeneously. You can mix different quantify, putting into the different capacity plastic containers fixed by rubber rings.
[ Main Features ]
Mixing time, speed are adjustable By means of four movements (two rotation + two shakes) per each round you get very homogeneous mixture. Three different plastic containers with different containers with different capacity make different quantity of mixing with the same machine
[ Technical Data ]
MAX. POWER consumption POWER SUPPLY WEIGHT OF POWDER TO BE MIXED TURNING SPEED ADJUSTABLE FROM CAPACITY OF PLASTIC CONTAINER DIMENSION MACHINE LENGTH WEIGHT	: 0.2 KVA : 220V, 2PHASE, 50/60HZ : 2KG : 30 TO 45, 2 STEP RPM : 2 LITER : 600MMx WIDTH:460MMxHEIGHT:395MM : 60 Kg
