Machines > Dressing & Grinding > Grinding SGM 400

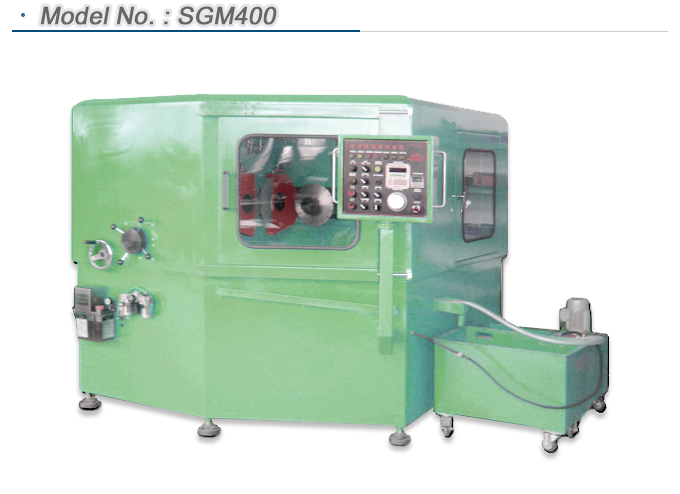

SIde Grinding Machine

[ explanation ]
This machine is designed to dress & grind side parts of diamond blade for small cutter. Laser saw(4-16inch), etc to increase productivity separating front grinding process in semi-auto way.
[ Main Features ]
Manual feeding of grinding wheels Adjustable main shaft rotation speed Adjustable oscillation of grinding wheel Dust & abrasive collecting system Periodical auto lubrication system
[ Technical Data ]
Power supply Max. power consumption Dimension for wheel Wheel Rotation Spindle Rotation Overall Dimensions Weight	: 220V/380V, 3Phases, 50/60Hz : 5KVA : OD305mm x ID63.5mm x T16mm : 1,720RPM : 120-350RPM : 800W x 1,200L x 1,500H : Approx.1,200Kg
