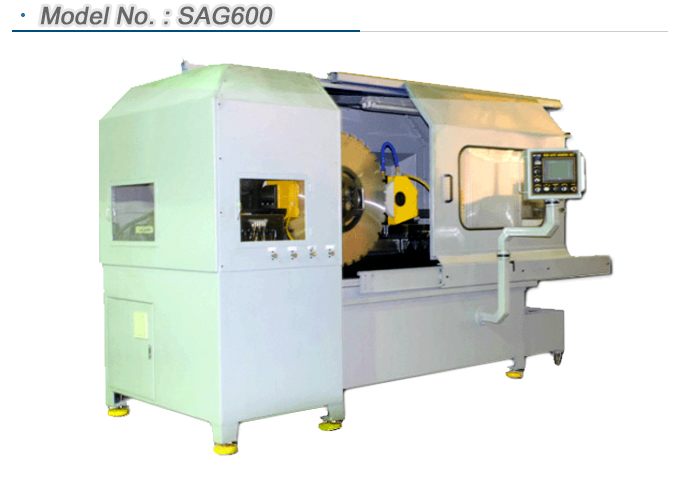

Machines > Dressing & Grinding > Dressing SAG 600

Dressing Machine

[ Main Features ]
Adjustable main shaft rotation speed Adjustable oscillation of grinding wheel Auto blade locking system. Anti noise & dust system Dust & abrasive collecting cooling unit Infeeding of grinding wheels are controlled by program with servo motor Auto lubrication system. (L.M Block & Ball Screw)
[ Technical Data ]
POWER SUPPLY ELECTRIC POWER BLADE DIAMETER BLADE SPEED SIDE GRINDING WHEEL MOTOR FRONT GRINDING WHEEL MOTOR SIDE GRINDING WHEEL DIAMETER FRONT GRINDING WHEEL DIAMETER AIR CONSUMPITION COOLING WATER CONSUMPITION WATER TANK CAPACITY COOLING OVERALL DIMENSIONS WEIGHT(INDICATIVE)	: 380V, 3PHASES, 50Hz (Different voltages and frequencies on request) : 12 KVA : 230 TO 800 MM : 25 ~ 100 RPM : 1,460 RPM : 1,460 RPM : Φ305 X Φ76.2 X 20T : Φ305 X Φ76.2 X 30T : 20 LITER - 6 BARS : 50 LITER - 2~4 BARS : 150 LITERS : WATER WITH RUST INHIBITOR : L (2,600 MM) x W(1,500 MM) x H(2,000 MM) : Approx. 2,500 KG
