Machines > Dressing & Grinding > Grinding FGM 400

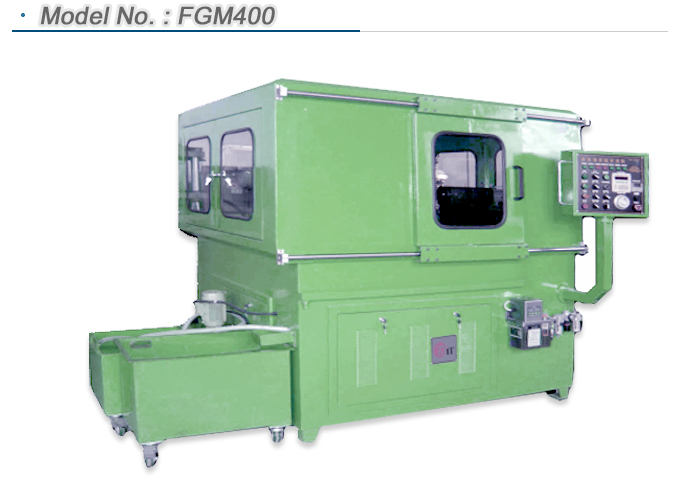

Front Grinding Machine

[ explanation ]
This machine is designed to dress & grind front parts of many pieces diamond blade for small cutter. Laser saw(4-16inch), etc to increase productivity separating side grinding process in semi-auto way.
[ Main Features ]
Manual feeding of grinding wheels Adjustable main shaft rotation speed Adjustable oscillation of grinding wheel Dust & abrasive collecting system Periodical auto lubrication system
[ Technical Data ]
Power supply Max. power consumption Dimension for wheel Wheel Rotation Spindle Rotation Overall Dimensions Weight	: 220V/380V, 3Phases, 50/60Hz : 5KVA : OD305mm x ID76.2mm x T50mm : 2,800RPM : 120-500RPM : 1,300W x 1,000L x 900H : Approx.450Kg
