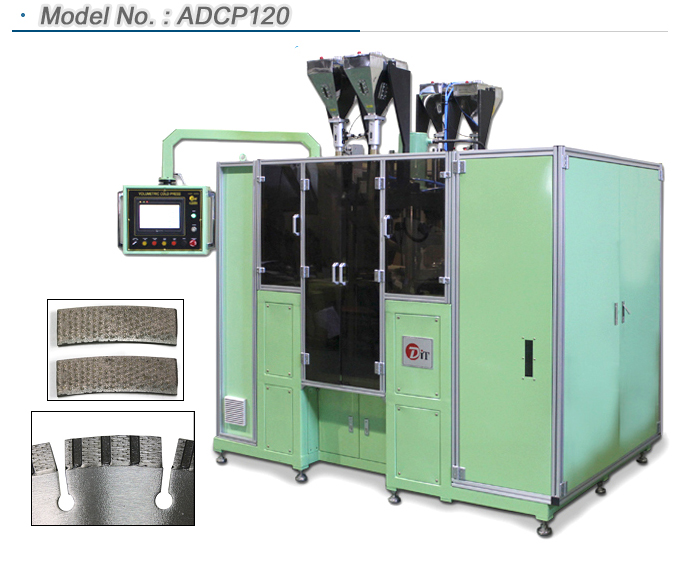

  Machines>Cold Press ADCP120



[ explanation ]
This machine is designed to make diamond segment green compacting, is required to use granulated powder by volumetric method.
[ Main Features ]
Programming and storing through PLC different programs allowed.
Proceeding with subsequent similar cycles.
It is allowed to manufacture multi-layer diamond segments.
Laser segments production.
[ Technical Data ]

Max Power Consumption
Power Supply
Max. Air Consumption
Pressure
Air Pressure Power
Volumetric Weighing Range
Working Capacity
Segment Weighing Tolerance
Overall Dimension of machine
Weight

: 15 KW
: 220 Volt, 3 Phase, 50Hz
: 20 liters/min
: From 5,000 to 30,000Kg
: 6-8 bars
: 0.50 to 10grams
: 15 sec/ seg. Diamond 6 Lay
: Max 0.03mm / one filling
: 2,200W x 1,400L x 2,300H
: Approx.2,500Kg
