Machines>Cold Press ACP30

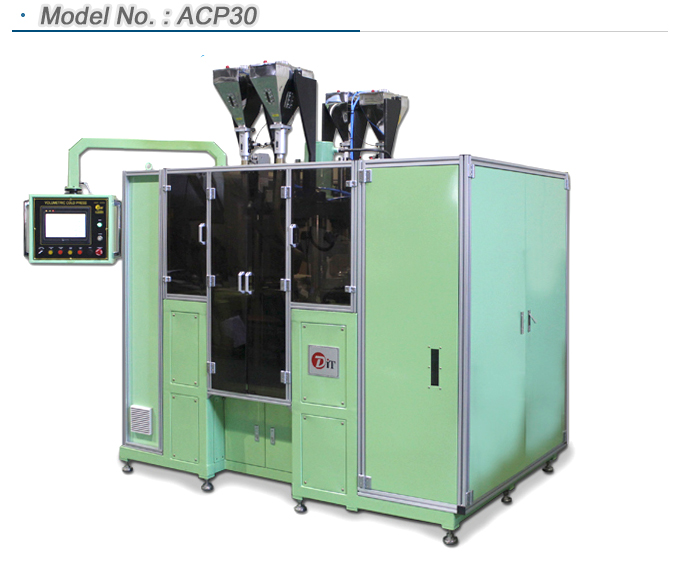

Model No. ACP30

[ explanation ]
This machine is designed to make diamond segment green compacting, is required to use granulated powder by volumetric method.
[ Main Features ]
Programming and storing through PLC different programs allowed. Proceeding with subsequent similar cycles. It is allowed to manufacture multi-layer diamond segments. Laser segments production.
[ Technical Data ]
Max Power Consumption Max. Air Consumption Pressure Air Pressure Power Volumetric Weighing Range Segment Weighing Tolerance Overall Dimension of machine Weight	: 9.5KW : 20 liters/min : From 3,000 to 30,000Kg – Big segment : 6-8 bars : 0.50 to 50grams : Max 0.03mm / one filling : 2,200W x 1,400L x 2,300H : Approx.2,500Kg
